HTTP Connection ( GET / POST ), Example C# Code

1. AP



SSID = "Your SSID"

PASSWORD = "Your Password"









2. 접속서버



HOST = "my_test.com"

PORT NUMBER = 80









3. AT Commands



// set Station mode

AT+CWMODE=1



// Lists available APs.

AT+CWLAP



// access to the internet
AT+CWJAP="SSID","password"



// Establishes TCP connection, UDP transmission or SSL connection

AT+CIPSTART="TCP","my_test.com",80



// Sends data when length of data is , or when \0 appears in the data

AT+AT+CIPSENDEX=93



// SEND DATA
POST /quiinc/event.php?id=S0000001&status=1 HTTP/1.0
Host: my_test.com
Connection: close









4. Exapmpe Code ( C# )



        private void Btn_esp_set_4_Click(object sender, RoutedEventArgs e)
        {
            // Establishes TCP connection, UDP transmission or SSL connection
            AT+CIPSTART="TCP","my_test.com",80



            Delay.MS(300);



            // POST
            str = "POST " + "/quiinc/event.php?id=S0000001&status=1" + " HTTP/1.0\r\n" +
                "Host: " + "my_test.com\r\n" +
                "Connection: close\r\n\r\n";



           // Sends data when length of data is , or when \0 appears in the data
            term.WriteCmd = "AT+CIPSENDEX=" + str.Length + "\r\n";



            Delay.MS(300);

            term.WriteCmd = str;
        }

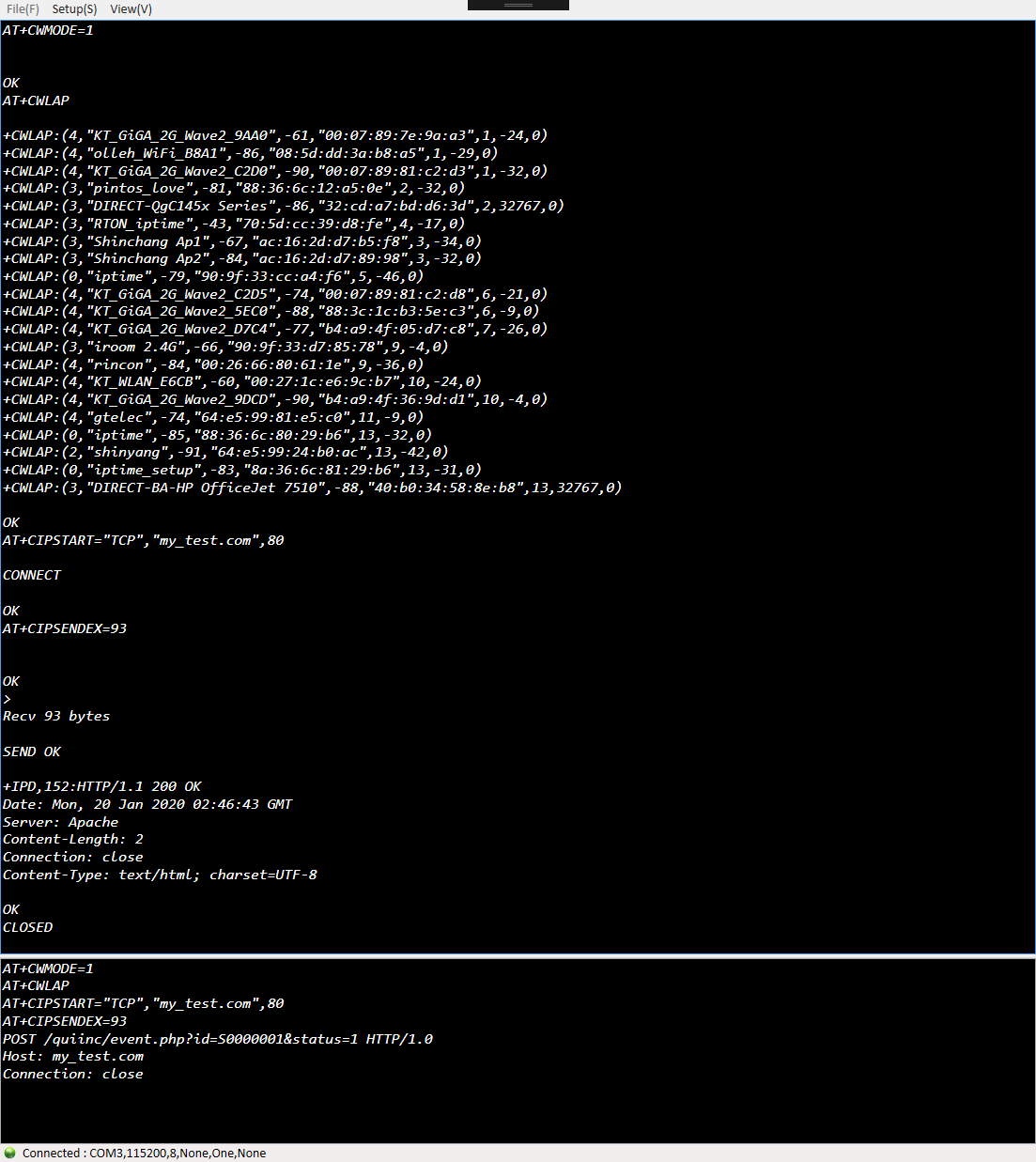

5. Run
